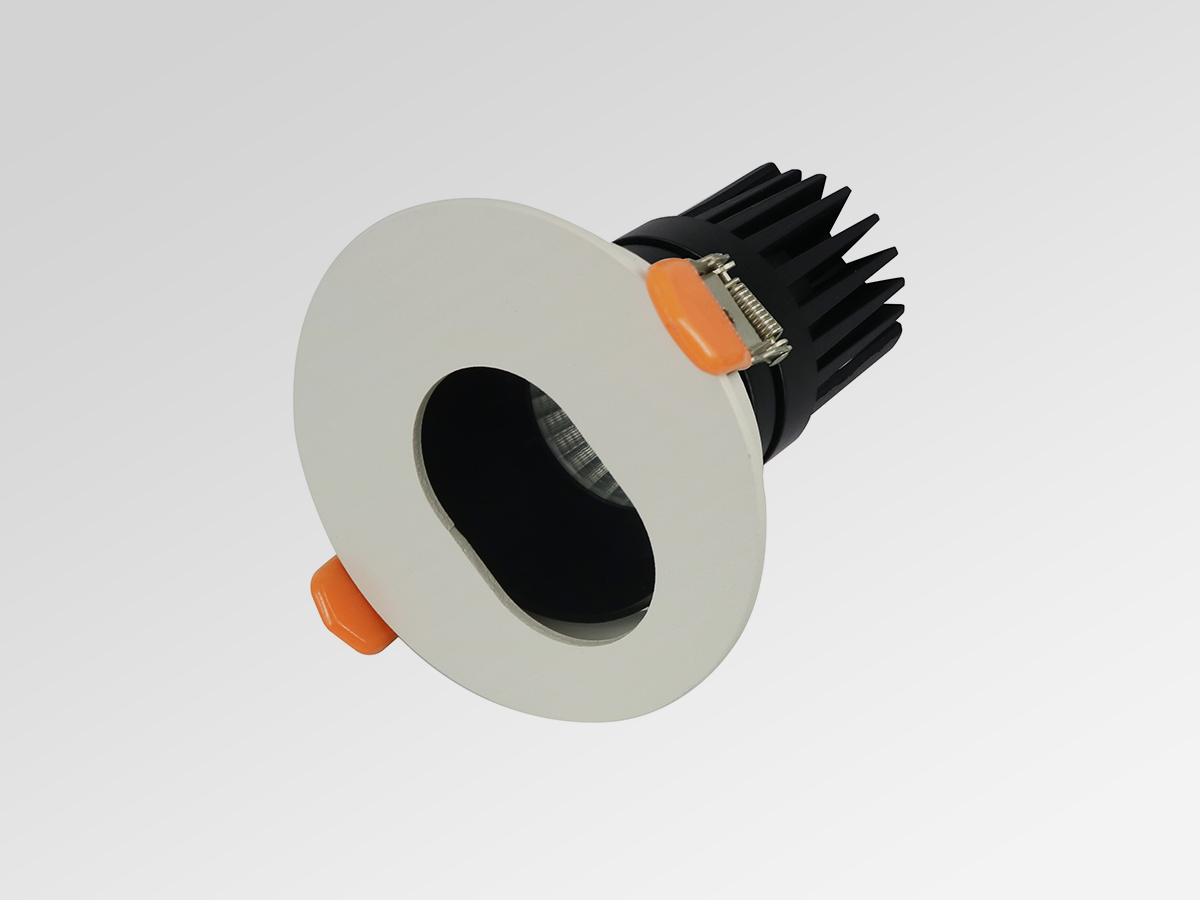

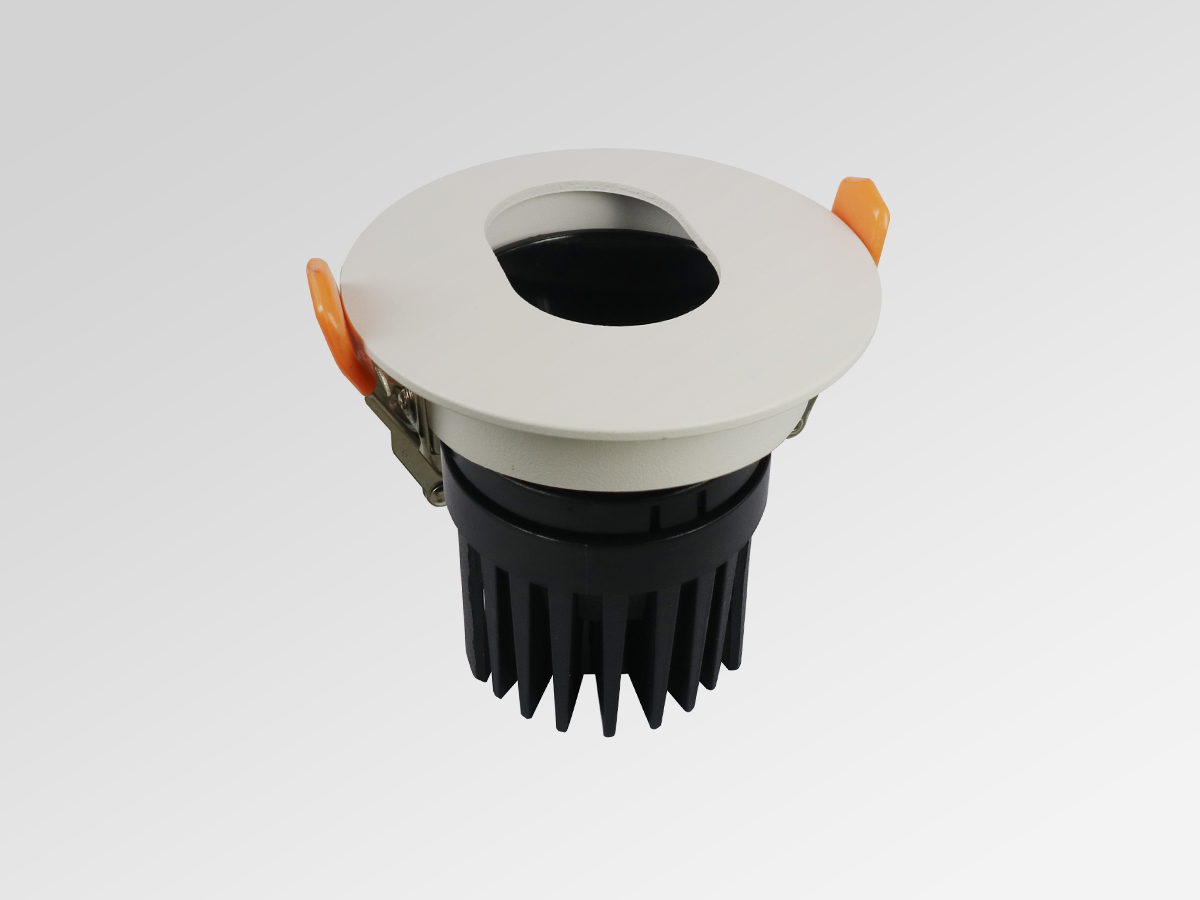

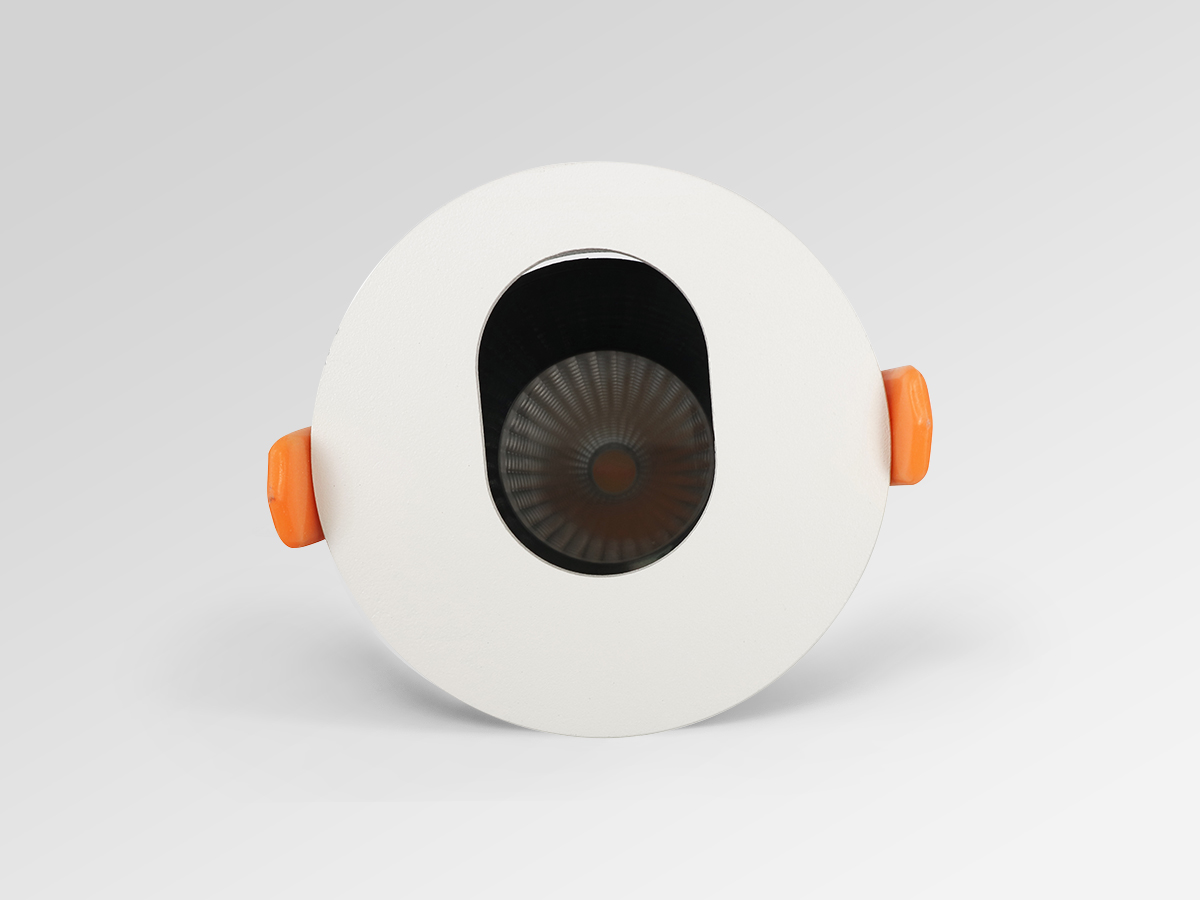

Pinhole LED Downlight




● Deep set lamp position for maximum visual comfort;

● Advanced die-casting Aluminum heat sink;

● Very narrow light beam 24°/38°;

● Pinhole | Elipse | Square | Semi-circular shape, can be angled or aimed;

● The gimble action directs the full spectrum light in your desired direction

● Dimmable , Support most European and Australian dimmers

● Flicker free led driver, 90Ra led chip and 3-CCT are available if required

● SAA, C-tick, CE and RoHS approved

● 3 years warranty


Applications:

  ● Hospitality applications● Residential applications ● Office Buildings
  ● Hotels● Shopping Malls● Supermarkets


Specification Video Contact

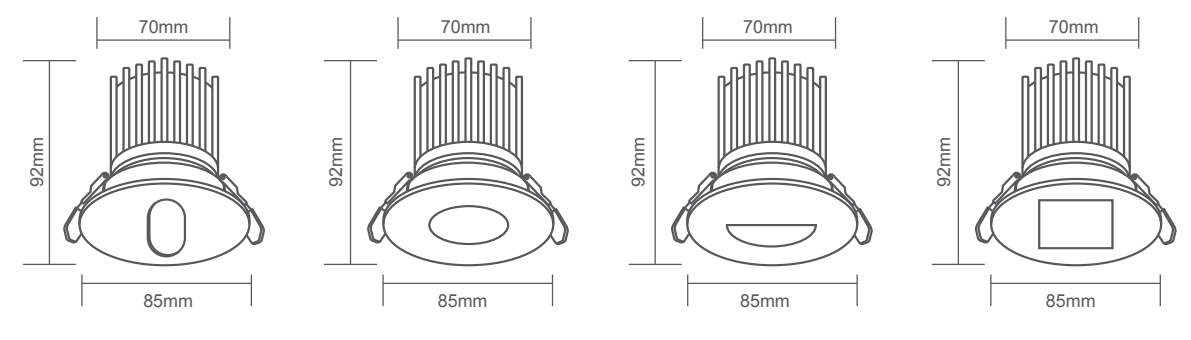

Product Dimention

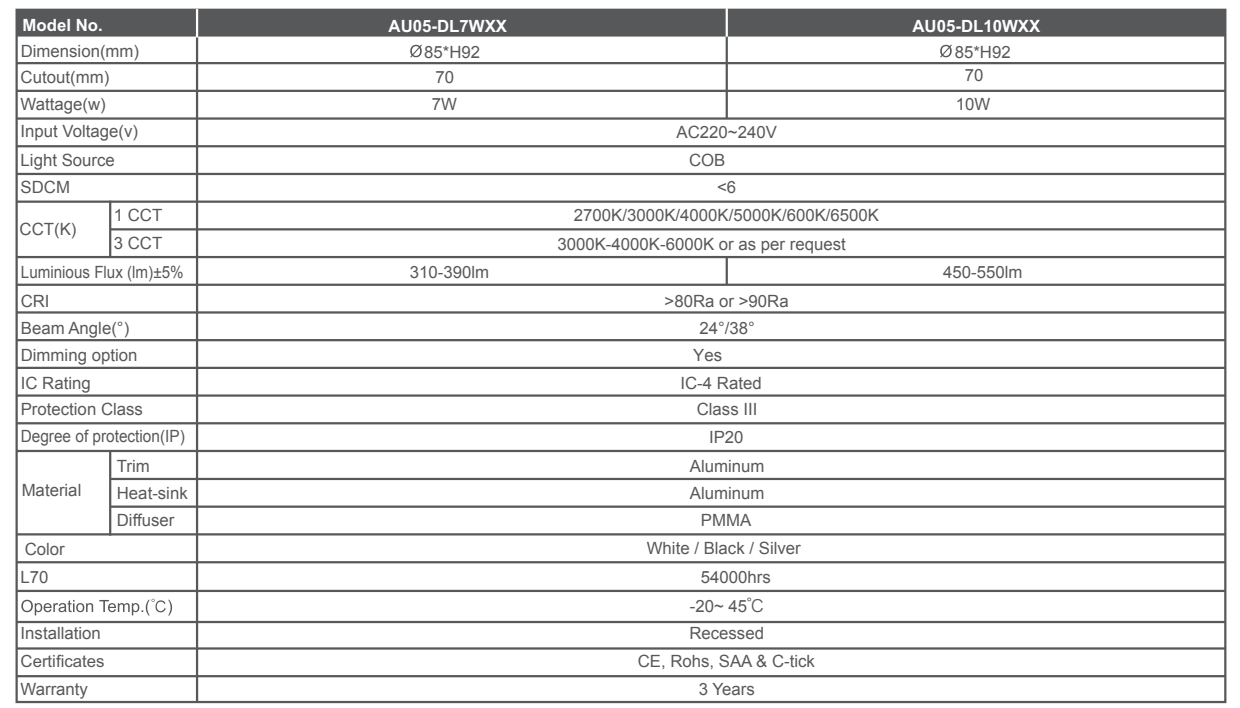

Technical Specifications

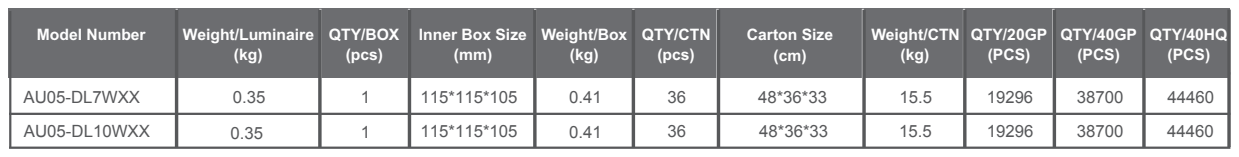

Packing information

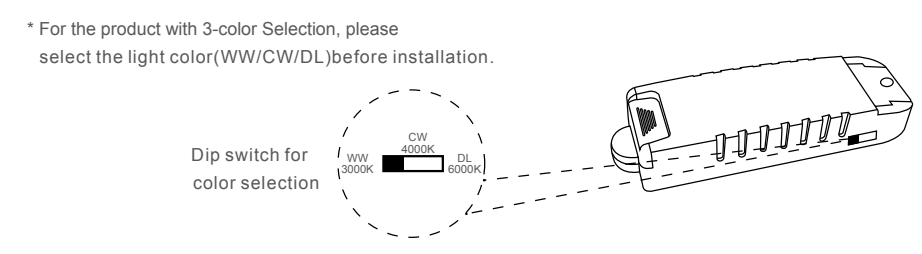

Install Instruction






Please Note:

* Turn off and isolate the electrical supply before connecting this fitting to the building wires.

* Must be installed, or connected by licenced electrician.

* The Luminaires are intended for indoor use only.
