● Wire from back or two ends,with big entry hole;
● Big Terminal Block or Quick play & plug connector, easy installation
● LED Replaceable board, very even light distribution
● Suspension strap attached to the lamp & base part, makes installation easier

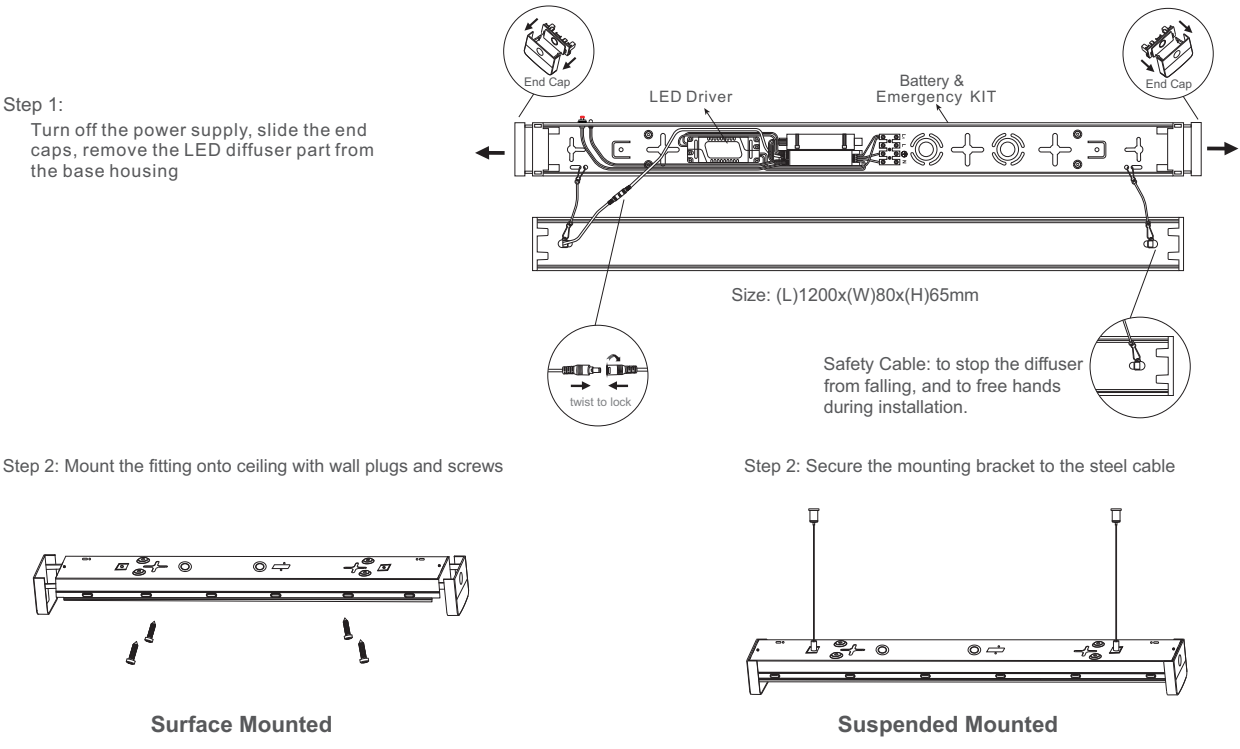

● Can be Surface Mounted or Suspended
● Can be linked one to another, end by end, without gap
● CE, Rohs, SAA, C-tick & AS/NZ 2293.3 Approved
● LiFePO4 Battery adopted, 3.5W run 3 hours
● 3 years warranty for whole lamp
Applications:
| ● Warehouses | ● Supermarkets | ● Shopping Malls |
| ● Office Buildings | ● Workshops | ● Car Parks |
Specification
Video
Contact

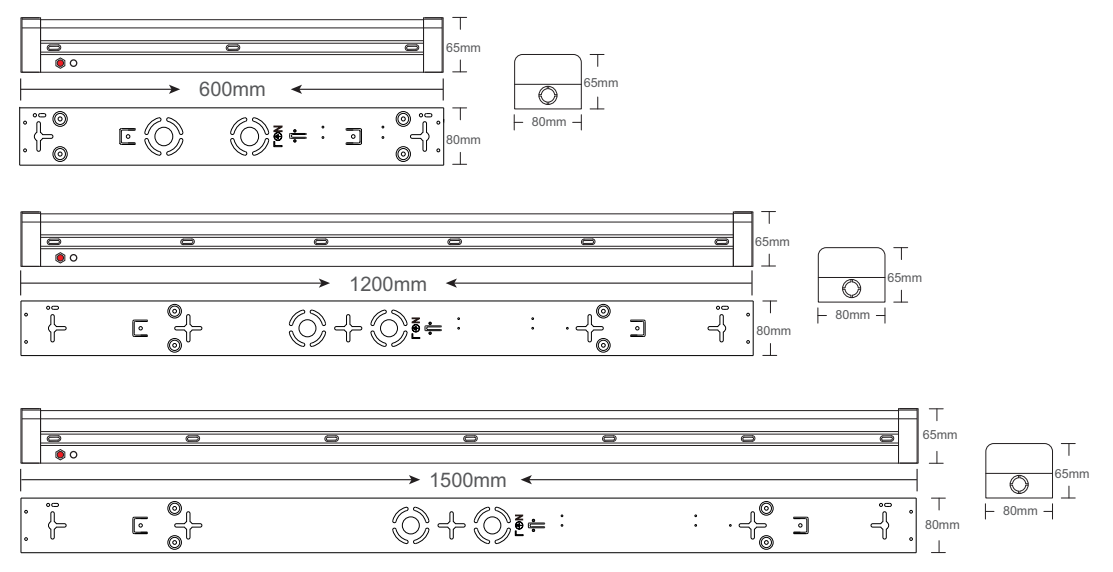

Technical Specifications

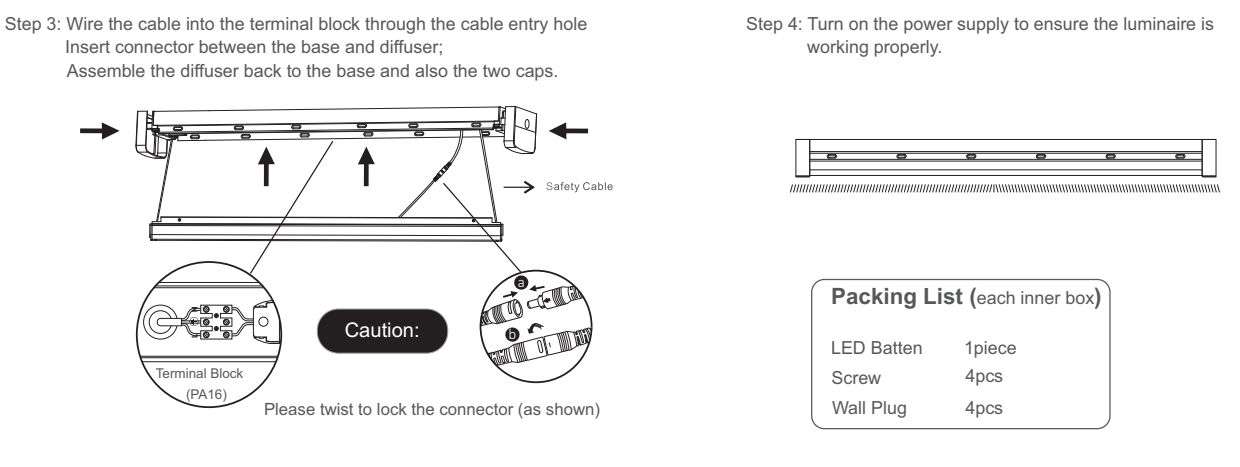

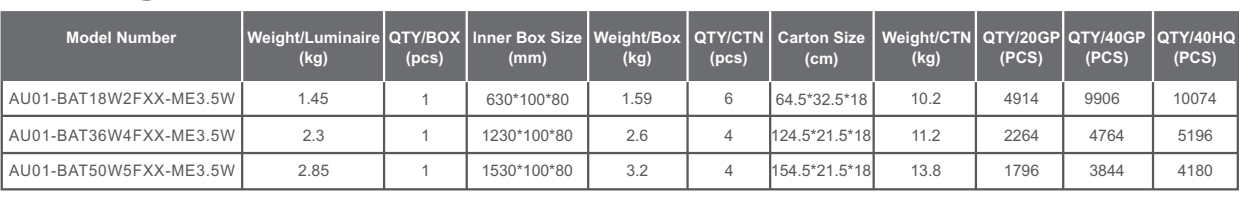

Packing information

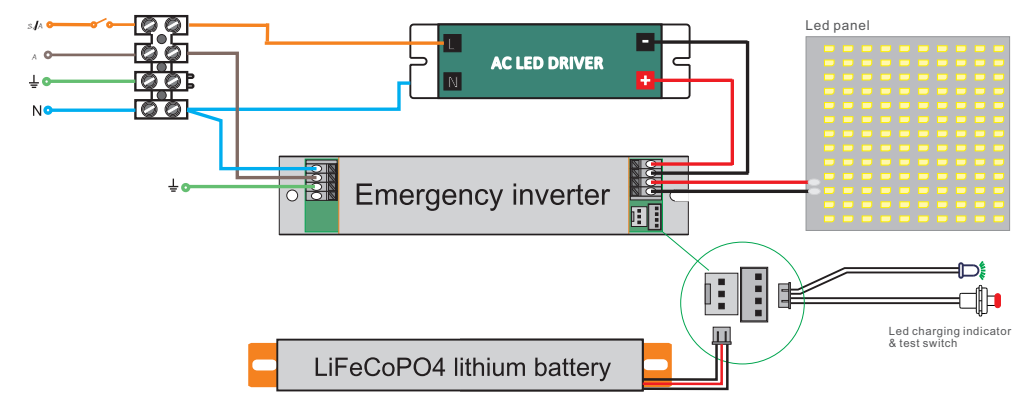

Wiring Diagream
Testing
When luminaire is permanently connected to mains supply, allow the luminaire to fully charge for 16 hours.
Conduct following tests once the battery has fully charged:
Test 1:
A commissioning discharge test must be carried out once the luminaire is connected to mains supply.
The emergency luminaire must remain illuminated for at least 2 hours after disconnection from the mains power.
NOTE: The luminaire works on standard power when connected to mains supply and switches to 3.5W power during.
emergency mode operation.
Test 2:
Subsequent tests, performed every 6 months, require the luminaire to successfully operate in emergency mode for 90mins.
NOTE: A record shall be maintained of all the discharge tests performed on site at all times.

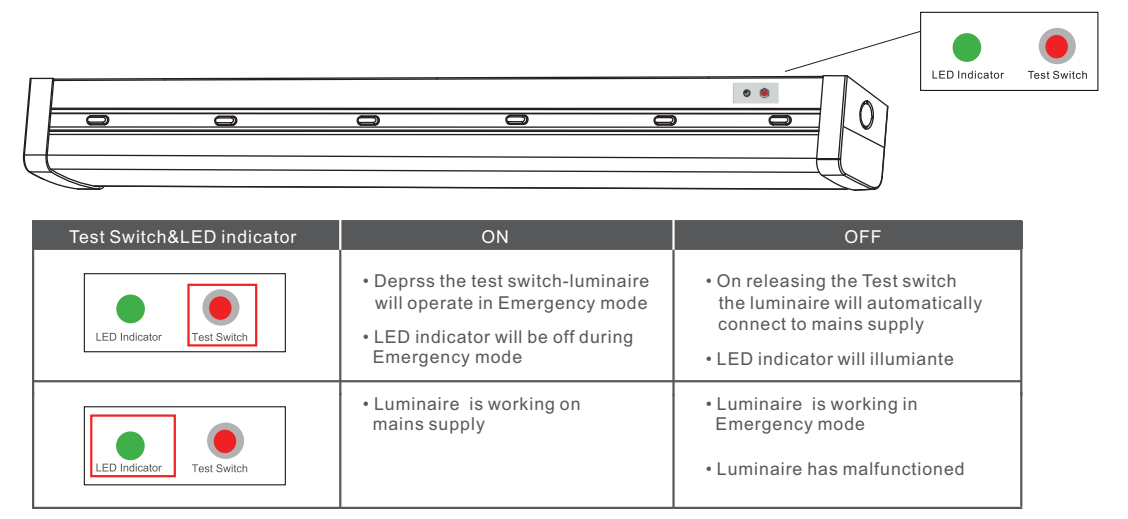

Test Switch and LED Indicator:
The Test Switch and LED indicator on the luminaire provide an indication of the status of the luminaire during testing and normal operation
NOTE: * Self-test option is available
* It is recommended to disconnect the battery before storage or delievery
* Battery should be charged once in six months in order to keep it in initial performance
Please Note:
* Turn off and isolate the electrical supply before connecting this fitting to the building wires.
* Must be installed, or connected by licenced electrician.
* The Luminaires are intended for indoor use only.
