● IP65 IP69K - Waterproof, Dustproof, Moisture-proof and Vapour proof
● Clear and Frosted diffuser available
● PC and PMMA diffuser available ( PC-IK10 , PMMA-Anti-Ammonia )
● Aluminum heat sink inside, better for heat dissipation

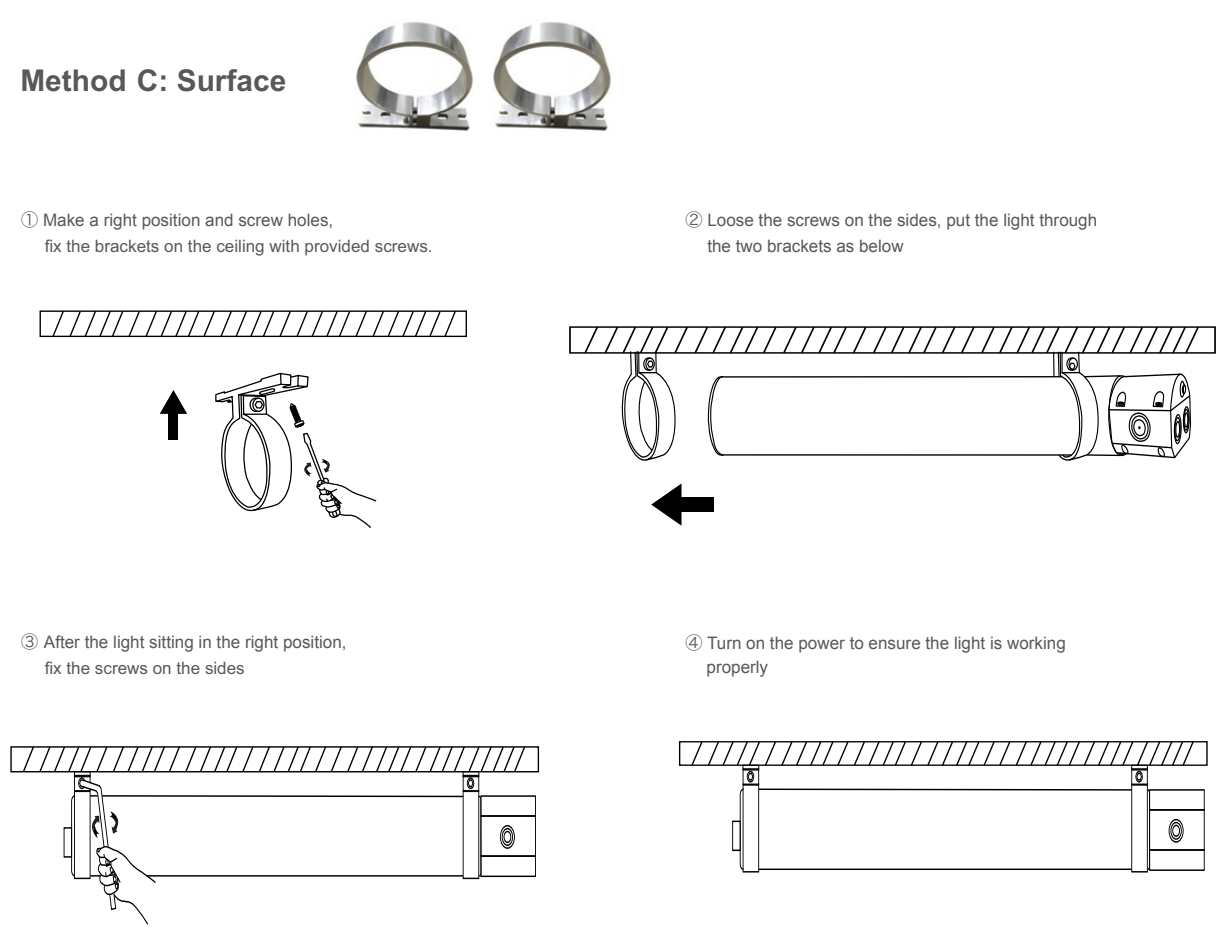

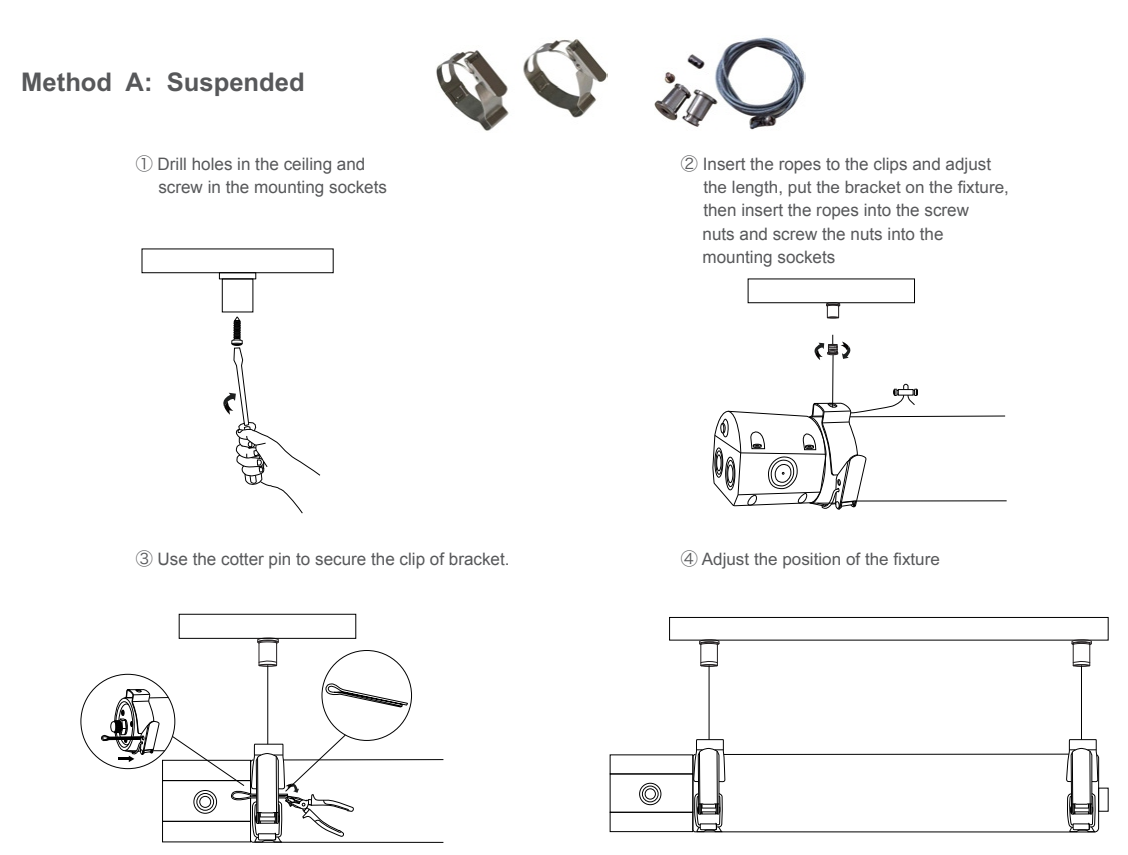

● Can be Surface Mounted or Suspended(could not be linkable)
● LiFePO4 Battery adopted, 3.5W run 3 hours
● CE, RoHS, SAA &C-tickapproved
● Sensor & Emergency versions available
● Flicker free available
● Dimming available
Applications:
| ● Coal plants | ● Power plants | ● Animal farms |
| ● Tunnels | ● Overpass | ● Car Parks |
| ● Food processing plants | ● Flower farms |
Specification
Video
Contact

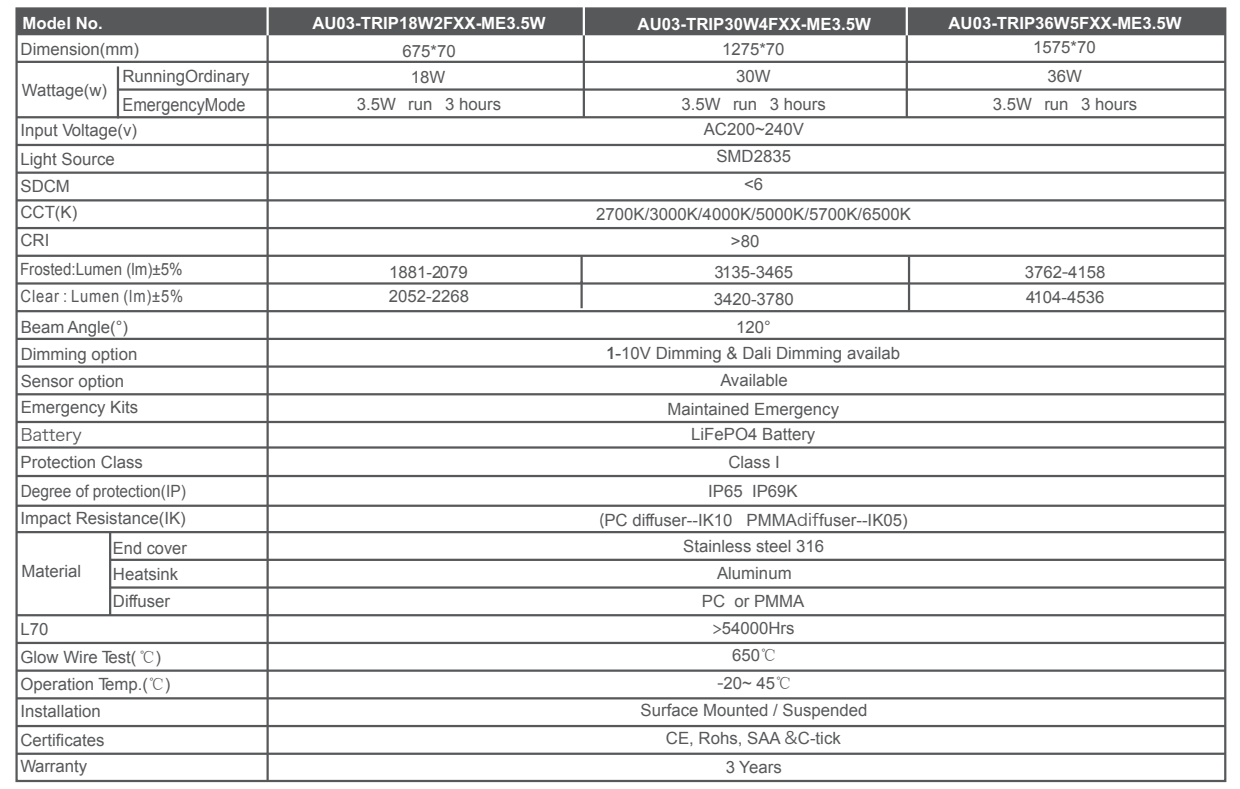

Technical Specifications

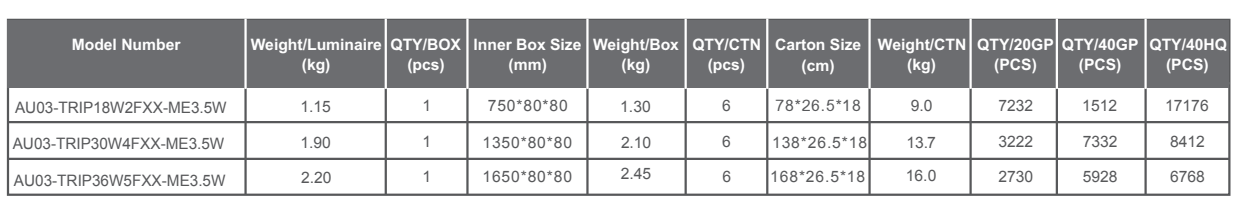

Packing information
Wiring Diagream
NOTE: Live wire to wall switch must be in same phase with the charging Live wire Maintained Emergency used
When luminaire is permanently connected to mains supply, allow the luminaire to fully charge for 16 hours.conduct following tests once the battery has fully charged
Note: Battery should be charged once in six mouths in order to keeping it in initial performan

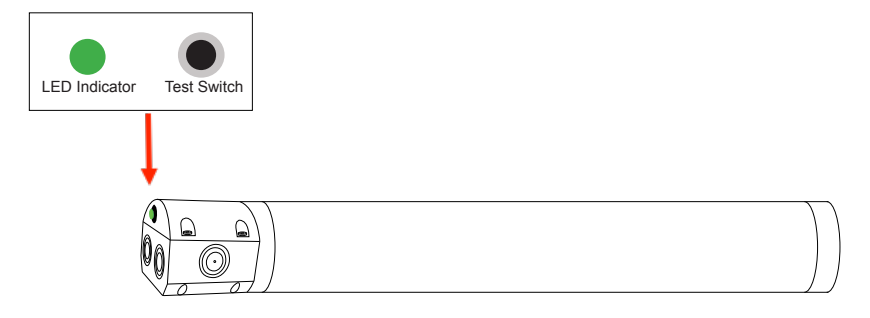

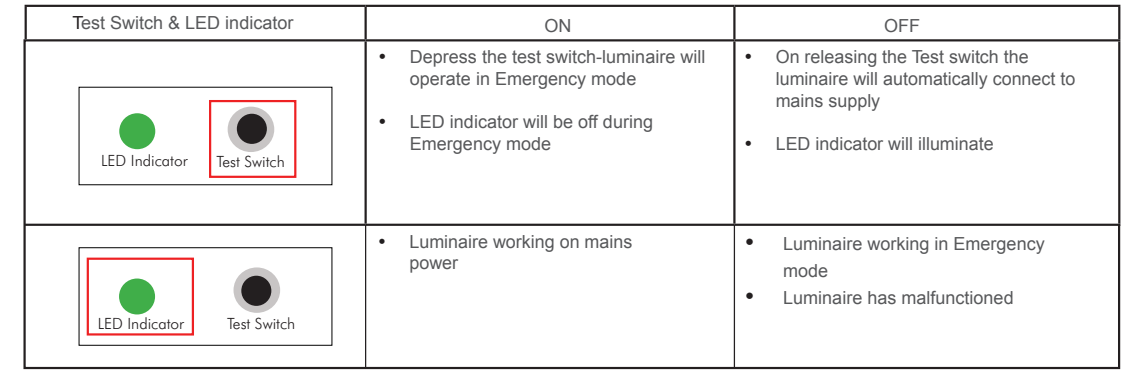

Test Switch and LED Indicator:
The Test Switch and LED indicator on the luminaire provide an indication of the status of the luminaire during testing and normal operation
Please Note:
* Product must be installed by licensed electrician.
* Disconnect or turn off the power before installation.
* Verify the supply Voltage is the same as rated luminaire voltage.
Packing List (each inner box)
* Tri-proof light: 1pcs
* Screw: 4pcs
* Brackets: 2pcs
