● IP65 - Waterproof, Dustproof, Moisture-proof

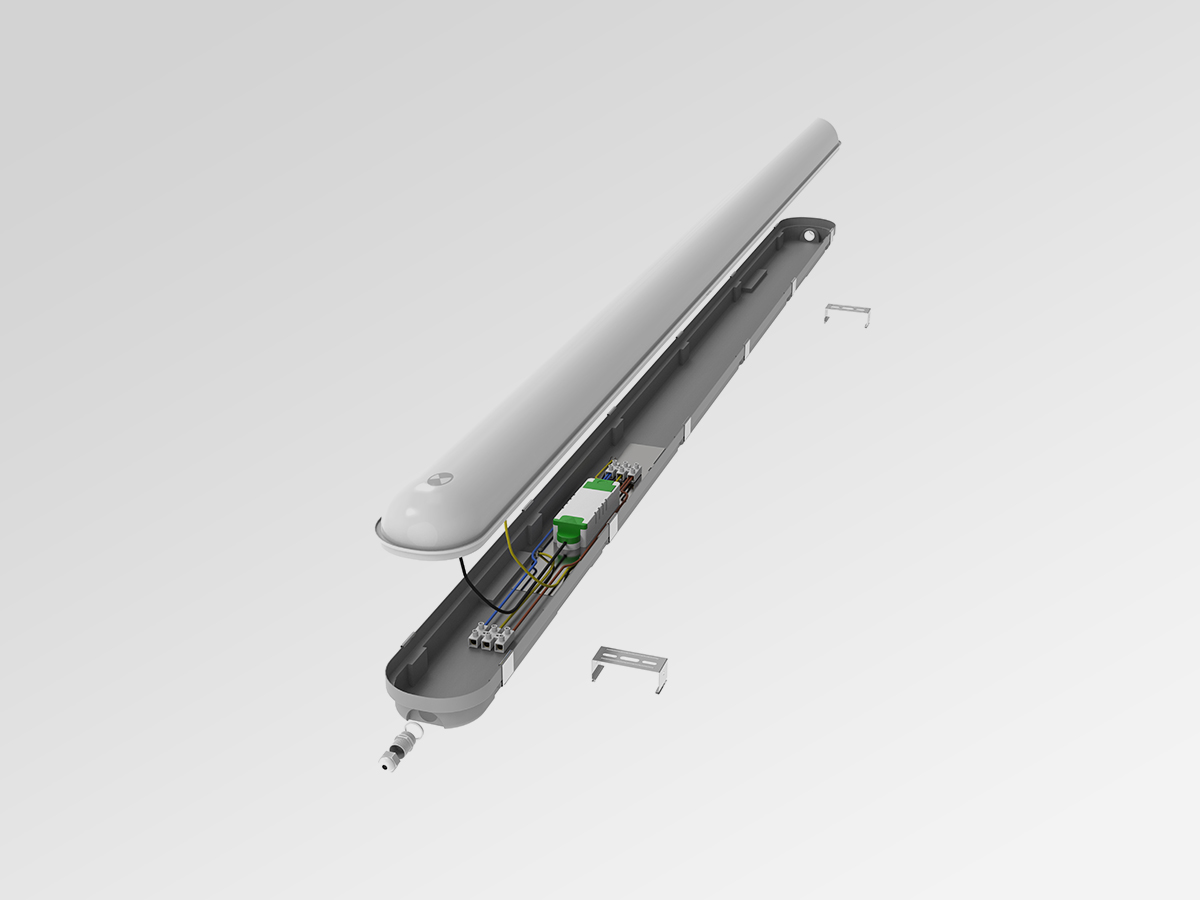

● Full PCB board and the diffuser is a whole part, no need to take the PCB apart but wire directly, much easier than the normal design
● Cables can be from the back or the two ends of the light, easy wiring

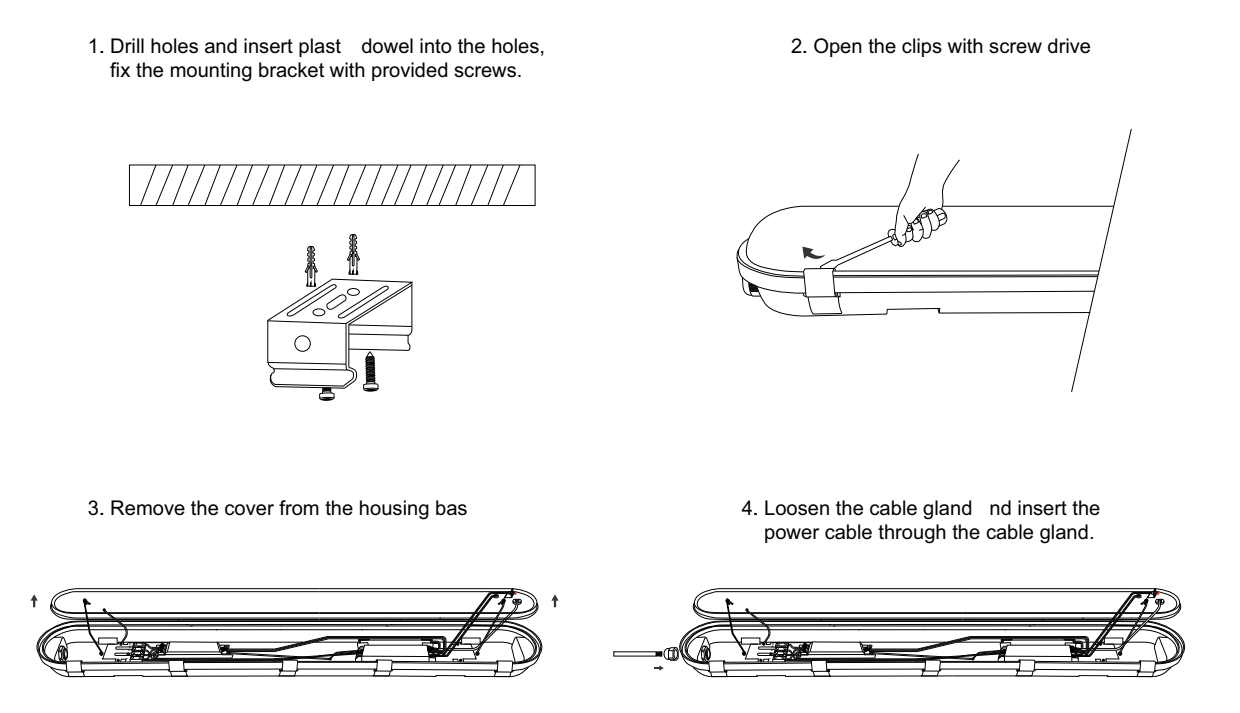

● Easy end clips, one step assembly
● With Safety cables, free your hands during the installation
● Can be Surface Mounted or Suspended
● Can be linked one to another
● CE, RoHS, SAA & C-tick approved

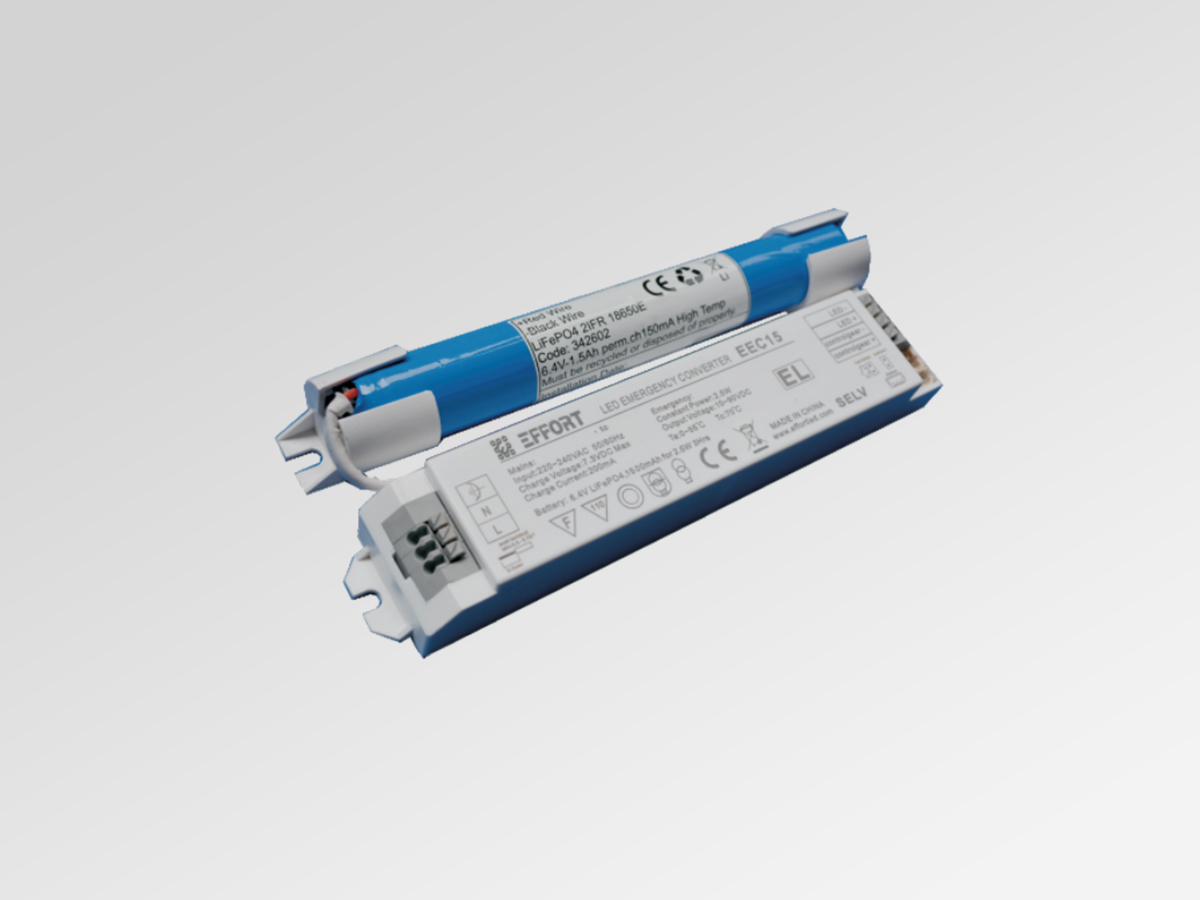

● LiFePO4 Battery adopted, 3.5W run 3 hours
● 3 years warranty for whole lamp
● Single CCT & Tri-color available
● Flicker free ,Triac Dimming, 1-10V Dimming & Dali Dimming available

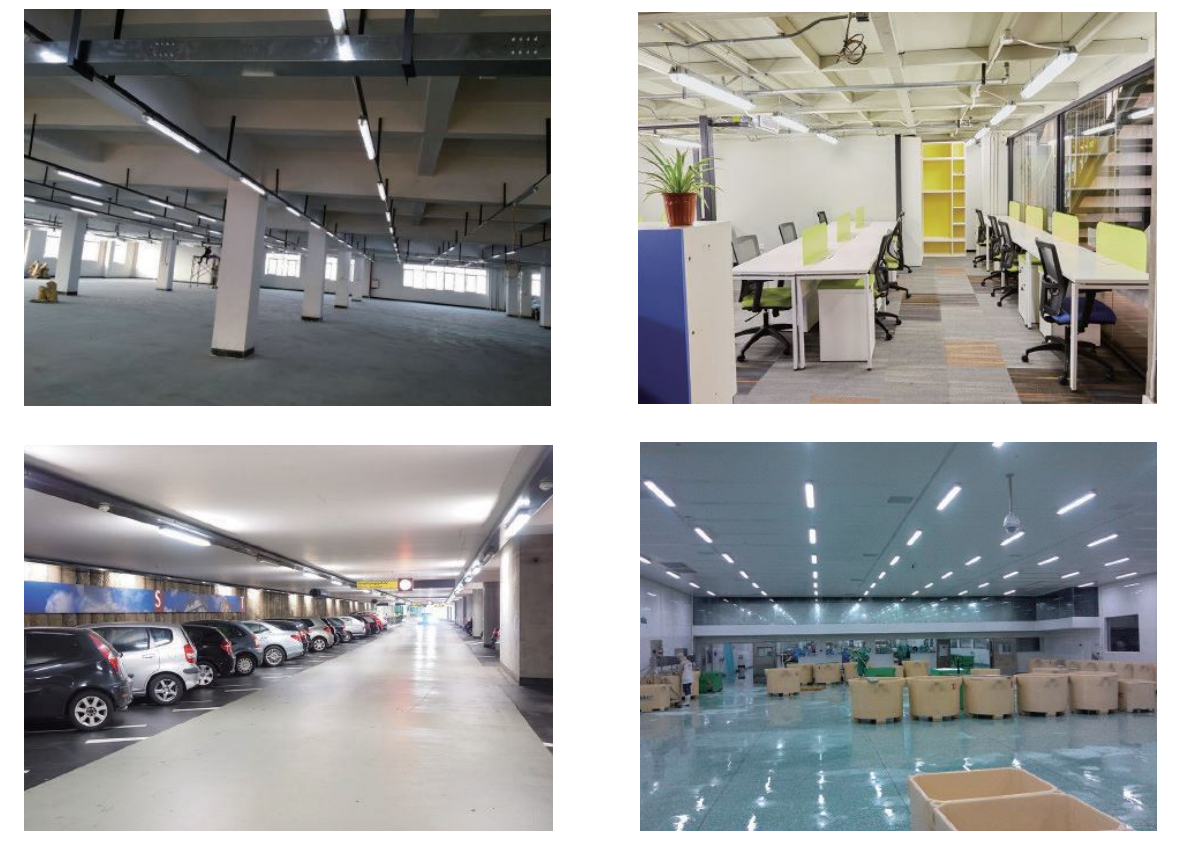

Applications:
| ● Parking lots | ● Warehouses | ● Factories |
| ● Tunnels | ● Basements | ● Lofts |
| ● Balcony | ● Car washing station |
Specification
Video
Contact

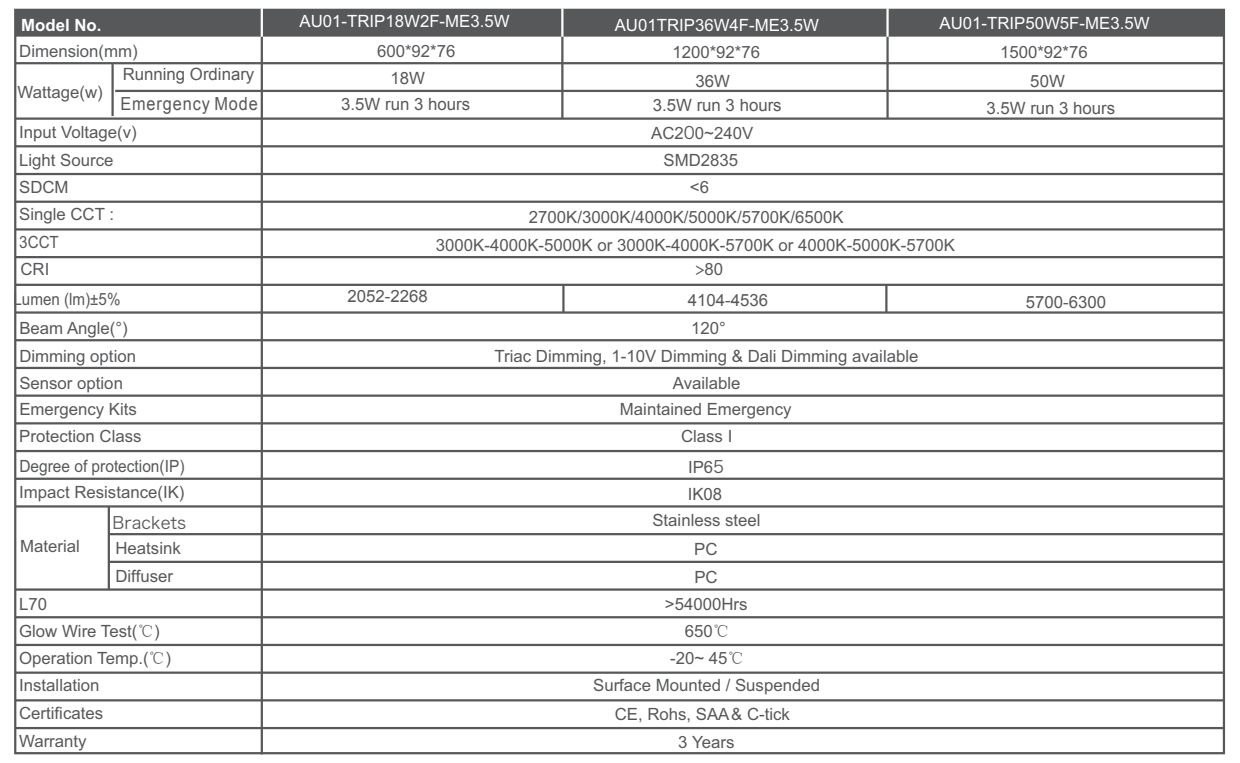

Technical Specifications

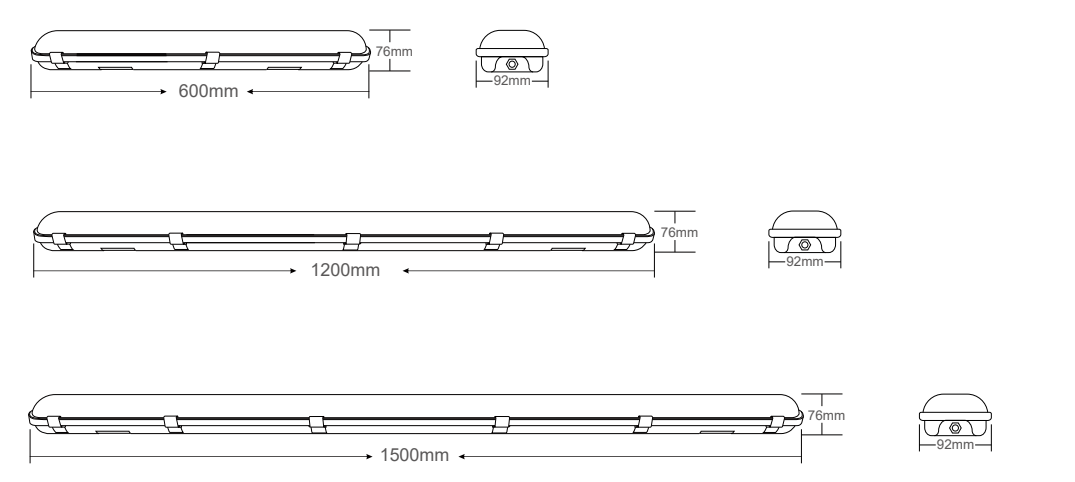

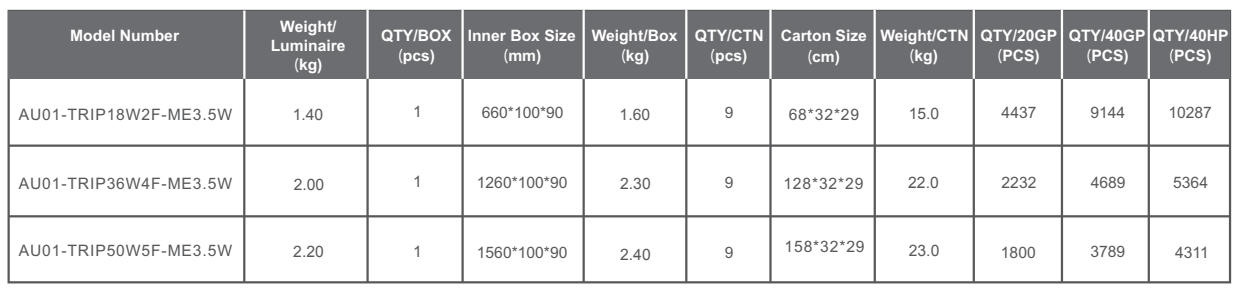

Packing information

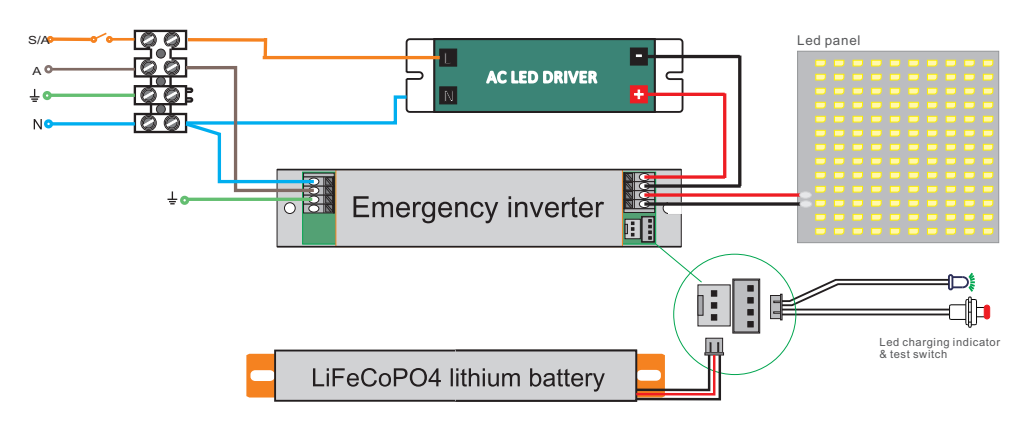

Wiring Diagream
Testing
When luminaire is permanently connected to mains supply, allow the luminaire to fully charge for 16 hours.
Conduct following tests once the battery has fully charged:
Test 1:
A commissioning discharge test must be carried out once the luminaire is connected to mains supply.
The emergency luminaire must remain illuminated for at least 2 hours after disconnection from the mains power.
NOTE: The luminaire works on standard power when connected to mains supply and switches to 3.5W power during.
emergency mode operation.
Test 2:
Subsequent tests, performed every 6 months, require the luminaire to successfully operate in emergency mode for 90mins.
NOTE: A record shall be maintained of all the discharge tests performed on site at all times.

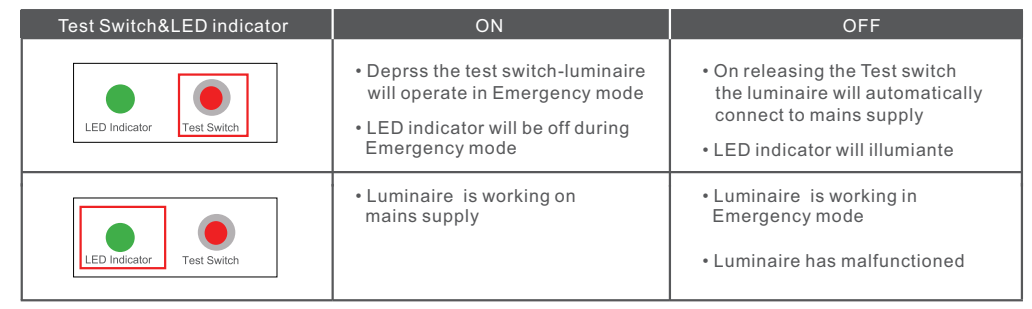

Test Switch and LED Indicator:
The Test Switch and LED indicator on the luminaire provide an indication of the status of the luminaire during
testing and normal operation
Please Note:
* Product must be installed by licensed electrician.
* Disconnect or turn off the power before installation.
* Verify the supply Voltage is the same as rated luminaire voltage.
Packing List (each inner box)
Tri-proof light: 1pcs
Screw: 6pcs
Brackets: 2pcs
Connector: 1pcs
Clip used to hold the wires 1pcs
Applications:
